📌 Introduction

Procedural Blocks: For always and initial blocks, they make statements execute like conventional software, ex: if-else, case, but cannot contain continuous assign statement.

always Block

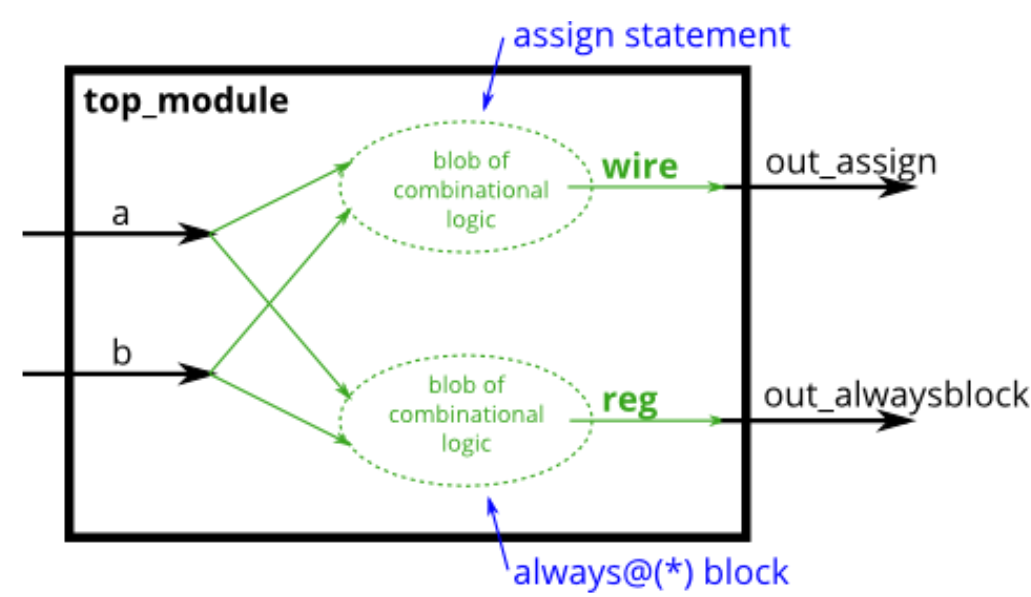

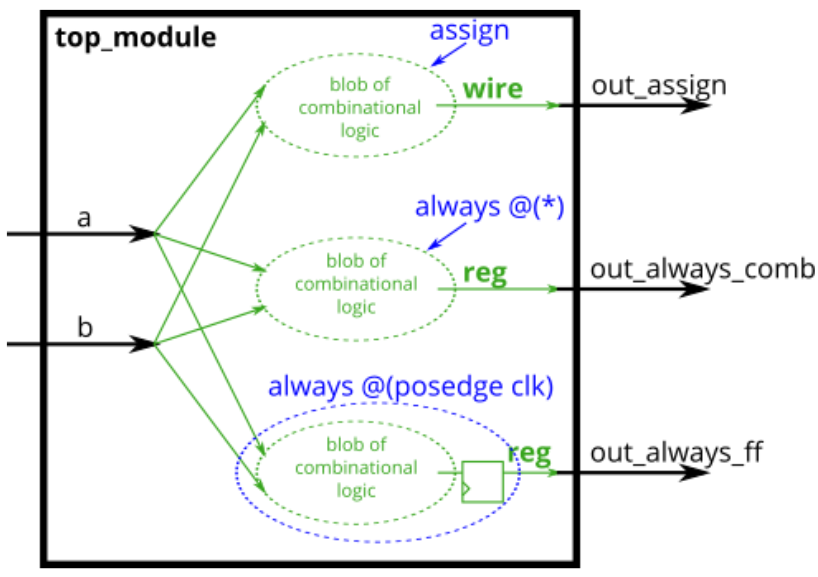

Combinational: It is equivalent to assign statement. Both are synthesized to the same circuit, declaration of wire or reg don’t effect post-synthesization. alt text Clocked: Instead of responding with input immediately, it is typically trigered on clock posedge. alt text

In a combinational always block, use blocking assignments. In a clocked always block, use non-blocking assignments.

🧑‍💻 Code Example

Combinational always Block

module top_module(
    input a,
    input b,
    output wire out_assign,
    output reg out_alwaysblock
);
	assign out_assign = a & b;
    always @ (*) begin
       out_alwaysblock = a & b;
    end
endmodule

Clocked always Block

module top_module(
    input clk,
    input a,
    input b,
    output wire out_assign,
    output reg out_always_comb,
    output reg out_always_ff   );

    assign out_assign = a ^ b;
    always @(*) out_always_comb = a ^ b;
    always @(posedge clk) out_always_ff <= a ^ b;

endmodule
