7400-series IC
📌 Introduction
7420

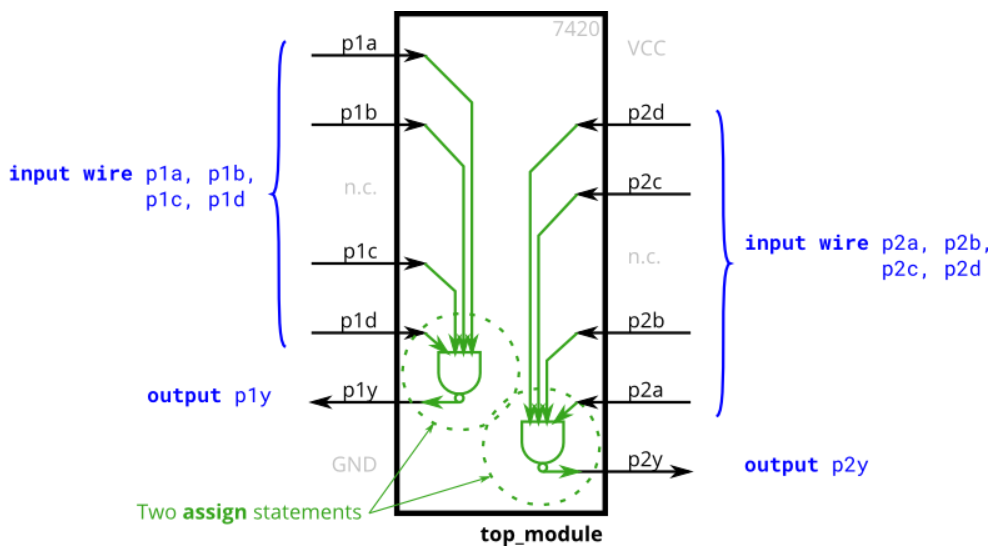

The 7420 is a chip with two 4-input NAND gates.
🧑💻 Code Example
module top_module (
input p1a, p1b, p1c, p1d,
output p1y,
input p2a, p2b, p2c, p2d,
output p2y );
assign p1y = ~(p1a & p1b & p1c & p1d);
assign p2y = ~(p2a & p2b & p2c & p2d);
endmodule
