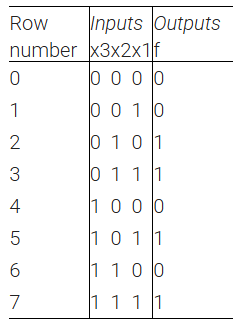

alt text

Sum-of-products form

module top_module(
    input x3,
    input x2,
    input x1,  // three inputs
    output f   // one output
);
    wire row2, row3 ,row5, row7;
    assign row2 = !x3 & x2 & !x1; // 010
    assign row3 = !x3 & x2 & x1;  // 011
    assign row5 = x3 & !x2 & x1;  // 101
    assign row7 = x3 & x2 &x1;    // 111
    assign f = row2 | row3 | row5 | row7;

endmodule

Miniterm

module top_module(
    input x3,
    input x2,
    input x1,  // three inputs
    output f   // one output
);
    assign f = ~x3 & x2 | x3 & x1;

endmodule

Simplification Process (Sum-of-Products → Minimal Form)

Starting from the canonical SOP expression:

f = ~x3*x2*~x1 + ~x3*x2*x1 + x3*~x2*x1 + x3*x2*x1

Step 1. Group terms with common factors

Group 1:

~x3*x2*~x1 + ~x3*x2*x1
= ~x3*x2*(~x1 + x1)
= ~x3*x2*(1)
= ~x3*x2

Group 2:

x3*~x2*x1 + x3*x2*x1
= x3*x1*(~x2 + x2)
= x3*x1*(1)
= x3*x1

Step 2. Combine the simplified groups

f = ~x3*x2 + x3*x1

Step 3. Final minimal form

f = x2 + x3*x1

Verilog Implementation

assign f = x2 | (x3 & x1);

Optional: K-map Verification

Plotting minterms (2, 3, 5, 7) on a 3-variable Karnaugh map shows two groups:

  • One group where x2 = 1
  • Another group where x3 and x1 are both 1

Hence, the simplified form f = x2 + x3*x1 is verified correct.
