2-bit Adder with Peripheral Control

📌 Introduction

• Device: Intel/Altera Cyclone IV (EP4CE22F17C6, 22K LEs)
• Board: Terasic DE0-Nano
• IDE: Quartus Prime Lite Edition

This mini project implements a 2-bit adder that the user can trigger with buttons. The operands come from slide switches, and the result is displayed on the LEDs. A single-cycle pulse is generated on the falling edge of the active-low Start button to latch the result.

🔧 Pin Mapping (DE0-Nano)

| Function | Pin (suggested) | Note | | ———- | ————— | ————————– | | KEY1 | Start | Active-low, triggers A + B | | KEY0 | Reset | Active-low reset | | SW[3:2] | A | 2-bit operand A | | SW[1:0] | B | 2-bit operand B | | LED[1:0] | Sum | Lower 2 bits of the result | | LED[2] | Carry | Carry out |

🧩 Requirements

1. On Start (press KEY1), capture the current A and B and perform the addition.
2. Show Sum and Carry on LEDs.
3. On Reset (press KEY0), clear the display.

🧑‍💻 Code Example

top.v

module top_module (
    input        CLOCK_50,
    input  [1:0] KEY,         // KEY[1]=Start (active-low), KEY[0]=Reset (active-low)
    input  [3:0] SW,          // SW[3:2]=A, SW[1:0]=B
    output reg [7:0] LED
);

    // Active-low buttons
	wire reset_n = KEY[0];
	wire start_n = KEY[1];
    // 2-bit ripple-carry adder wiring
	wire [1:0] sum;
	wire [1:0] cout;

	Fadd add0(.a(SW[2]), .b(SW[0]), .cin(1'b0), .cout(cout[0]), .sum(sum[0]));
	Fadd add1(.a(SW[3]), .b(SW[1]), .cin(cout[0]), .cout(cout[1]), .sum(sum[1]));

    // Two-flop synchronizer for the Start button + falling-edge detection (active-low press)
	reg start_n_dff1, start_n_dff0;
	always @ (posedge CLOCK_50 or negedge reset_n) begin
		if (!reset_n) begin
			{start_n_dff1, start_n_dff0} <= 2'b11;
		end
		else begin
			{start_n_dff1, start_n_dff0} <= {start_n_dff0, start_n};
		end
	end
	wire start = start_n_dff1 & ~start_n_dff0;

    // Display register (latches the result on Start)
	always @ (posedge CLOCK_50 or negedge reset_n) begin
		if (!reset_n) begin
			LED <= 8'h00;
		end
		else begin
			if (start) begin
				LED <= {5'b0, cout[1], sum[1:0]};
			end
		end
	end

endmodule

Fadd.v

module Fadd(input a, input b, input cin, output cout, output sum);
	assign sum = a ^ b ^ cin;
	assign cout = (a & b) | (a & cin) | (b & cin);
endmodule

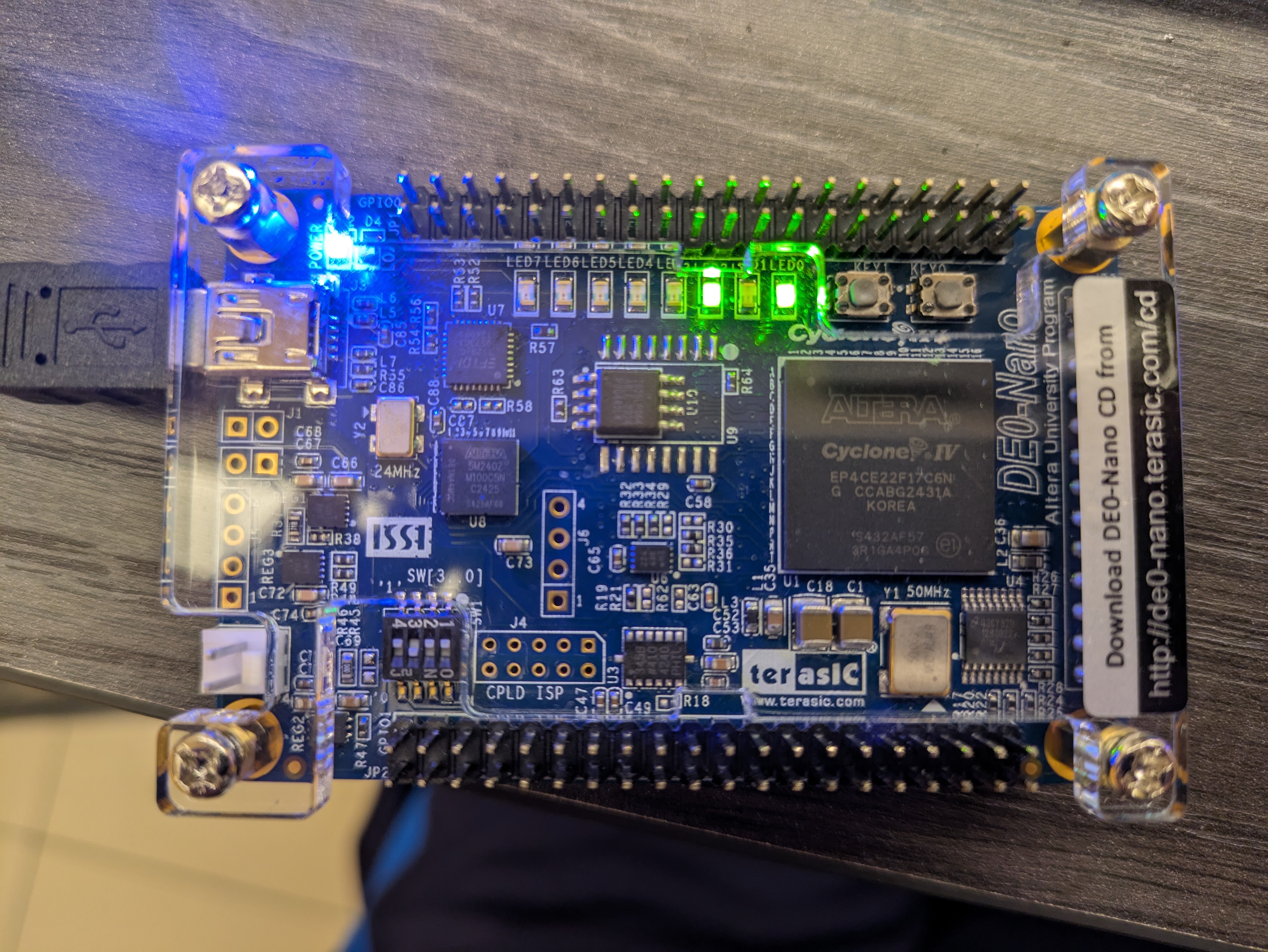

Result
