🧮 Method 1：SOP（Sum of Products，最常見的化簡法）

Steps

  1. 找出 1 的群組（可為 1、2、4、8 格，只要是 2^n 個相鄰 1）。
  2. 對每個群組寫出積項（AND），保留不變的變數，刪掉變化的變數。
  3. 所有積項用加號（OR）連接起來。

🧮 Method 2：POS（Product of Sums）

Steps

  1. 找出 0 的群組（可為 1、2、4、8 格，只要是 2^n 個相鄰 0）。
  2. 對每個群組寫出和項（OR），保留不變的變數並取，刪掉變化的變數。
  3. 所有和項用乘號（AND）連接起來。

🧑‍💻 Code Example

Kmap1

alt text

module top_module(
    input a,
    input b,
    input c,
    output out  );
	assign out = a | b | c;
endmodule

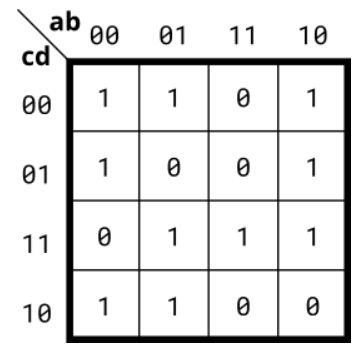

Kmap2

alt text

SOP

module top_module(
    input a,
    input b,
    input c,
    input d,
    output out  );
    //assign out = ( a&~b&d | b&c&d | ~b&~c | ~a&~d );
    assign out = (~b & ~c) | (~a & ~d) | (c & d & (a | b));
endmodule

Use POS aspect look cd column.

POS

module top_module(
    input a,
    input b,
    input c,
    input d,
    output out  );
    assign out = (~a|~b|c) & (~b|c|~d) & (a|b|~c|~d) & (~a|~c|d);
endmodule

Kmap3

alt text

SOP

module top_module(
    input a,
    input b,
    input c,
    input d,
    output out  );
    assign out = a | (~a&~b&c);
endmodule

POS

module top_module(
    input a,
    input b,
    input c,
    input d,
    output out  );
    assign out = (a|c) & (c|~d) & (a|~b);
endmodule

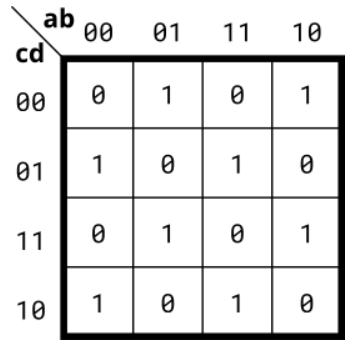

Kmap4

alt text

module top_module(
    input a,
    input b,
    input c,
    input d,
    output out  );
	assign out = a ^ b ^ c ^ d;
endmodule

It is a simple logic function, but one that can’t be easily expressed as SOP nor POS forms.

ece241_2013_q2

A single-output digital system with four inputs (a,b,c,d) generates a logic-1 when 2, 7, or 15 appears on the inputs, and a logic-0 when 0, 1, 4, 5, 6, 9, 10, 13, or 14 appears. The input conditions for the numbers 3, 8, 11, and 12 never occur in this system. For example, 7 corresponds to a,b,c,d being set to 0,1,1,1, respectively.

module top_module (
    input a,
    input b,
    input c,
    input d,
    output out_sop,
    output out_pos
);
    assign out_sop = (c&d)|(~a&~b&c);
    assign out_pos = (c) & (~b|~c|d) & (~a|b|~c);

endmodule

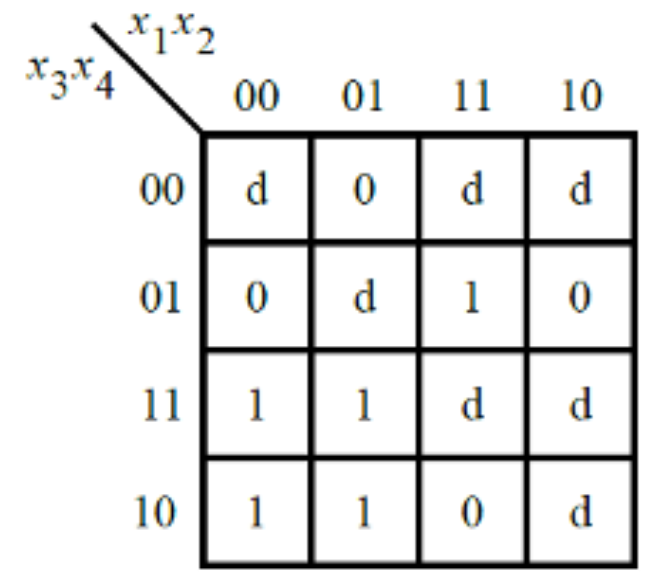

m2014_q3

alt text

module top_module (
    input [4:1] x,
    output f );
    assign f = (~x[1]&x[3]) | (x[2]&x[4]);
endmodule

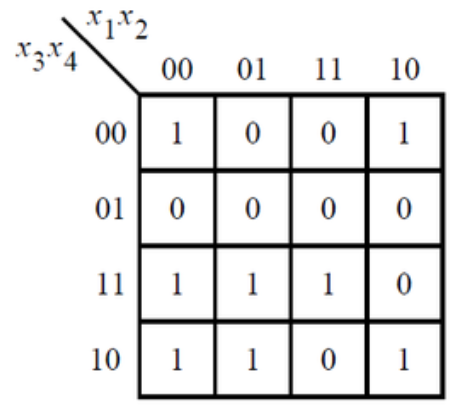

2012_q1g

alt text

SOP

module top_module (
    input [4:1] x,
    output f
);
    assign f = (~x[1]&x[3]) | (~x[2]&x[3]&~x[4]) | (x[2]&x[3]&x[4]) | (~x[2]&~x[3]&~x[4]);
endmodule

POS

module top_module (
    input [4:1] x,
    output f
);
    assign f = (~x[2]|x[3])&(x[3]|~x[4])&(~x[1]|x[2]|~x[4])&(~x[1]|~x[2]|x[4]);
endmodule

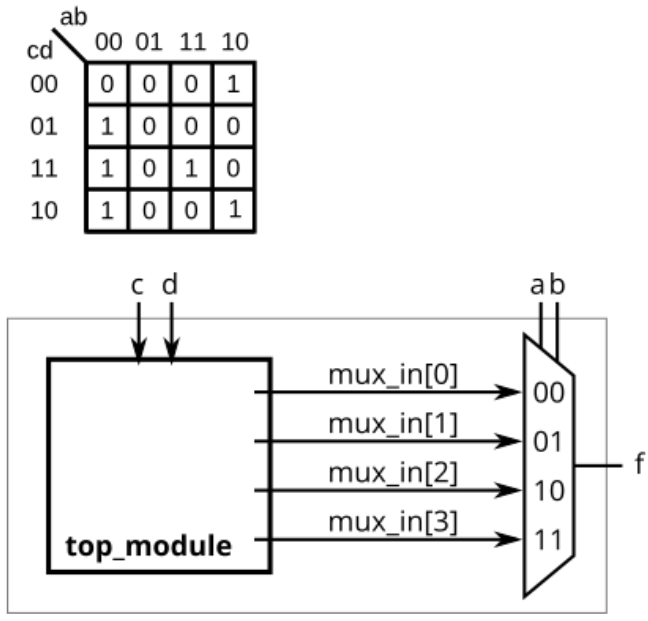

ece241_2014_q3

alt text

module top_module (
    input c,
    input d,
    output [3:0] mux_in
);
    assign mux_in[0] = (c|d);
    assign mux_in[1] = 1'b0;
    assign mux_in[2] = ~d;
    assign mux_in[3] = c&d;

endmodule

Be careful mux_in[2] is a=1, b=0, mux_in[3] is a=1, b=1.
