📌 Introduction

This example demonstrates how to detect any edge (both rising and falling) for each bit in an 8-bit input vector.

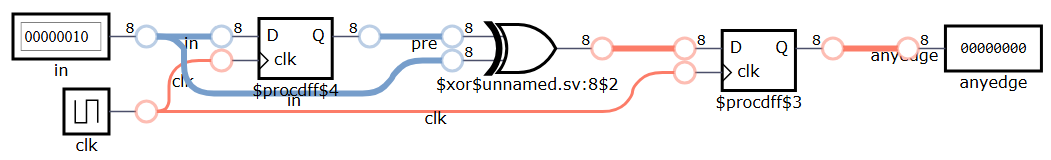

By storing the input from the previous clock cycle and comparing it with the current value, we can determine whether a bit has changed state.

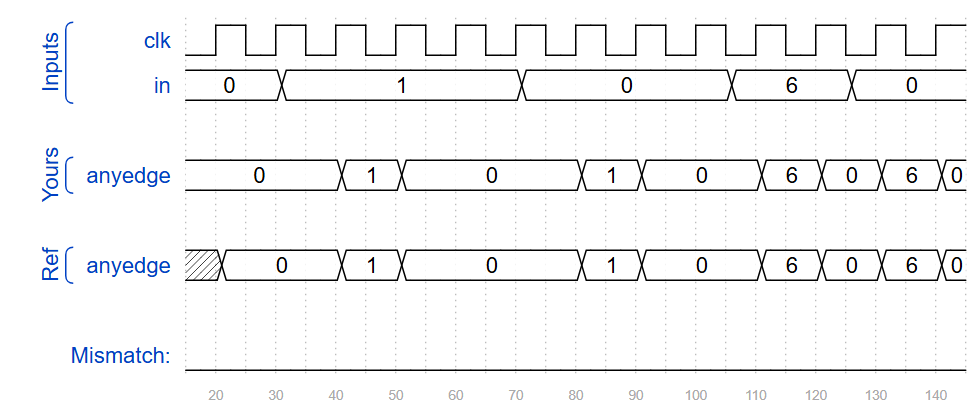

If a bit toggles (0→1 or 1→0), the output for that bit will be asserted for one clock cycle.

🧑‍💻 Code Example

module top_module (
    input clk,
    input [7:0] in,
    output reg [7:0] anyedge
);
    reg [7:0] pre;
    always @ (posedge clk) begin
        anyedge <= pre ^ in;
        pre <= in;
    end

endmodule
