📌 Question

Build a 4-bit shift register (right shift), with asynchronous reset, synchronous load, and enable.

  • areset: Resets shift register to zero.
  • load: Loads shift register with data[3:0] instead of shifting.
  • ena: Shift right (q[3] becomes zero, q[0] is shifted out and disappears).
  • q: The contents of the shift register.

If both the load and ena inputs are asserted (1), the load input has higher priority.

🧑‍💻 Code Example

module top_module(
    input clk,
    input areset,  // async active-high reset to zero
    input load,
    input ena,
    input [3:0] data,
    output reg [3:0] q);

    always @ (posedge clk or posedge areset) begin
        if (areset)
           q <= 4'b0;
        else if (load) // higer priority
            q <= data;
        else if (ena) begin
            q <= {1'b0, q[3], q[2], q[1]};
        end
    end

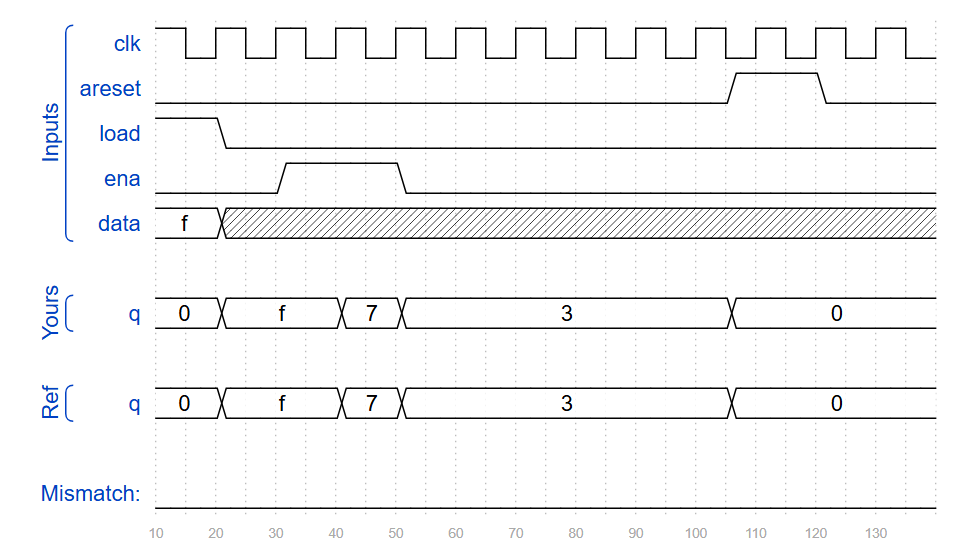

endmodule
