12-hour Clock
π Question
Create a set of counters suitable for use as a 12-hour clock (with am/pm indicator). Your counters are clocked by a fast-running clk, with a pulse on ena whenever your clock should increment (i.e., once per second).
reset resets the clock to 12:00 AM. pm is 0 for AM and 1 for PM. hh, mm, and ss are two BCD (Binary-Coded Decimal) digits each for hours (01-12), minutes (00-59), and seconds (00-59). Reset has higher priority than enable, and can occur even when not enabled.

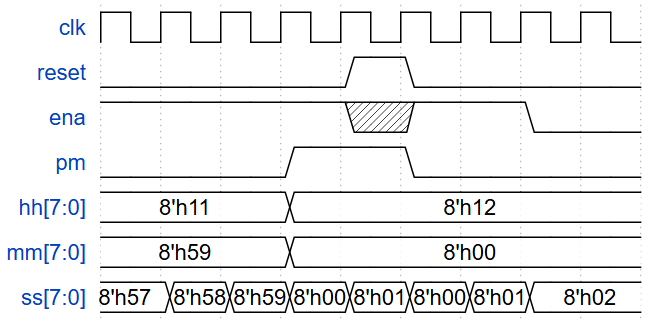

The following timing diagram shows the rollover behaviour from 11:59:59 AM to 12:00:00 PM and the synchronous reset and enable behaviour.
π§βπ» Code Example
BCD Counter
module Hours_counter(input clk, input reset, input ena, output [7:0] hour);
always @ (posedge clk) begin
if (reset) begin
hour <= 8'h12;
end
else if (ena) begin
if (hour==8'h12)
hour <= 8'h01;
else if (hour==8'h09)
hour <= 8'h10;
else
hour <= hour + 8'h01;
end
end
endmodule
module Minutes_counter(input clk, input reset, input ena, output [7:0] minute);
always @ (posedge clk) begin
if (reset) begin
minute <= 8'h00;
end
else if (ena) begin
if (minute==8'h59)
minute <= 8'h0;
else if ((minute & 8'h0F) == 8'h09)
minute <= (minute & 8'hF0) + 8'h10;
else
minute <= minute + 8'h01;
end
end
endmodule
module Seconds_counter(input clk, input reset, input ena, output [7:0] second);
always @ (posedge clk) begin
if (reset) begin
second <= 8'h00;
end
else if (ena) begin
if (second==8'h59)
second <= 8'h0;
else if ((second & 8'h0F) == 8'h09)
second <= (second & 8'hF0) + 8'h10;
else
second <= second + 8'h01;
end
end
endmodule
module top_module(
input clk,
input reset,
input ena,
output pm,
output [7:0] hh,
output [7:0] mm,
output [7:0] ss);
wire [7:0] s, m, h;
wire mm_ena = (ena && (s==8'h59));
wire hh_ena = (mm_ena && (m==8'h59));
reg pm_i;
always @ (posedge clk) begin
if (reset)
pm_i <= 1'b0;
else if (hh_ena & (h==8'h11)) begin
pm_i <= ~pm_i;
end
end
assign pm = pm_i;
assign ss = s;
assign mm = m;
assign hh = h;
Seconds_counter ss_counter(.clk(clk), .reset(reset), .ena(ena), .second(s) );
Minutes_counter mm_counter(.clk(clk), .reset(reset), .ena(mm_ena), .minute(m) );
Hours_counter hh_counter(.clk(clk), .reset(reset), .ena(hh_ena), .hour(h) );
endmodule
By Ordinary Counter
module Hours_counter(input clk, input reset, input ena, output [7:0] hour);
always @ (posedge clk) begin
if (reset) begin
hour <= 8'h0C;
end
else if (ena) begin
if (hour==8'hC)
hour <= 8'h01;
else
hour <= hour + 8'h01;
end
end
endmodule
module Minutes_counter(input clk, input reset, input ena, output [7:0] minute);
always @ (posedge clk) begin
if (reset) begin
minute <= 8'h0;
end
else if (ena) begin
if (minute==8'd59)
minute <= 8'h0;
else
minute <= minute + 8'h01;
end
end
endmodule
module Seconds_counter(input clk, input reset, input ena, output [7:0] second);
always @ (posedge clk) begin
if (reset) begin
second <= 8'h0;
end
else if (ena) begin
if (second==8'd59)
second <= 8'h0;
else
second <= second + 8'h01;
end
end
endmodule
module top_module(
input clk,
input reset,
input ena,
output pm,
output [7:0] hh,
output [7:0] mm,
output [7:0] ss);
wire [7:0] s, m, h;
wire mm_ena = (ena && (s==8'd59));
wire hh_ena = (mm_ena && (m==8'd59));
reg pm_i;
always @ (posedge clk) begin
if (reset)
pm_i <= 1'b0;
else if (hh_ena & (h==8'hB)) begin
pm_i <= ~pm_i;
end
end
assign pm = pm_i;
assign ss = s;
assign mm = m;
assign hh = h;
Seconds_counter ss_counter(.clk(clk), .reset(reset), .ena(ena), .second(s) );
Minutes_counter mm_counter(.clk(clk), .reset(reset), .ena(mm_ena), .minute(m) );
Hours_counter hh_counter(.clk(clk), .reset(reset), .ena(hh_ena), .hour(h) );
endmodule
