Shift Register (HDLBits)

📌 Question

Implement the following circuit:

🧑‍💻 Code Example

RTL Code

module top_module #(
    parameter WIDTH = 4
) (
    input wire clk,
    input wire resetn,   // synchronous reset
    input wire in,
    output wire out);

    reg [WIDTH-1:0] Q;
    assign out = Q[WIDTH-1];

    always @(posedge clk) begin
        if (~resetn)
            Q <= {WIDTH{1'b0}};
        else
            Q <= {Q[WIDTH-2:0], in};
    end
endmodule

Testbench Code

`timescale 1ns/1ps

module tb_top_module;

    reg clk;
    reg resetn;
    reg in;
    wire out;

    top_module dut (
        .clk(clk),
        .resetn(resetn),
        .in(in),
        .out(out)
    );

    initial begin
        resetn = 1;
        clk = 0;
        in = 0;
        forever #5 clk = ~clk;
    end

    initial begin
        $dumpfile("tb_top_module.vcd");
        $dumpvars(0, tb_top_module);

        // Initialize
        #10
        resetn = 0;
        #10;
        resetn = 1;

        in = 1;
        #10;
        in = 0;

        #50;

        in = 1;
        #10;
        in = 0;

        // Reset again
        resetn = 0;
        #10;
        resetn = 1;

        #30;

        in = 1;
        #10;
        in = 0;

        #30;
        $finish;
    end

    initial begin
        $monitor("Time=%0t resetn=%b out=%b", $time, resetn, out);
    end

endmodule

Shift Register (HDLBits)

📌 Question

🧑‍💻 Code Example

RTL Code

Testbench Code

🔬 Results

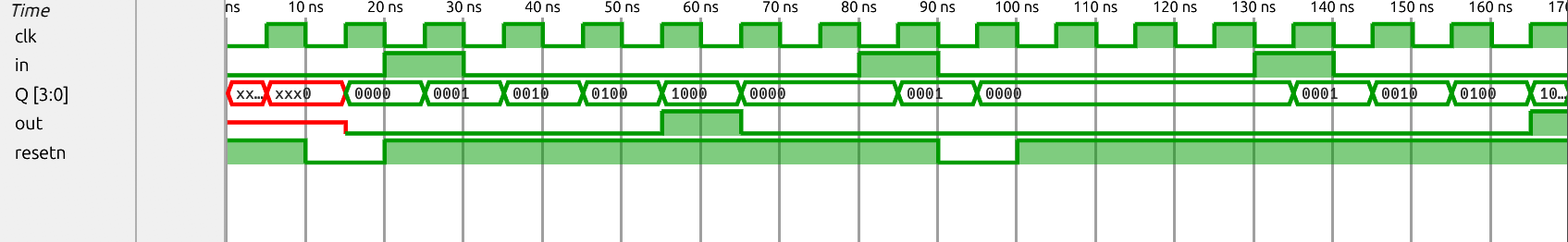

Simulation Waveform

Synthesis RTL-level Schematic

Synthesis Gate-level Schematic

📚 Reference
